GSL2500C-MV

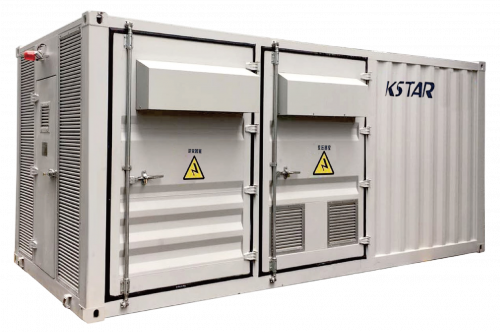

GSL2500C-MV container-type PV inverter,which is DC1000V Turnkey Solution（Inverter+MV Transformer+RMU), is a standardized 20ft shipping container. It is applicable for large-scale centralized PV power plants. It greatly shortens construction period and saves construction cost as it can be directly installed outdoors. It is high efficiency, high reliability and fast installation.
General Features
● Max. PV voltage up to 1000V
● Max.40 DC inputs
● Modular design for Easy maintenance
● Max. DC/AC ratio up to 1.5
● Full power output under 50℃
● AGC/AVC
● SVG function at night
● IP54 outdoor protection
● LVRT/HVRT/FRT function

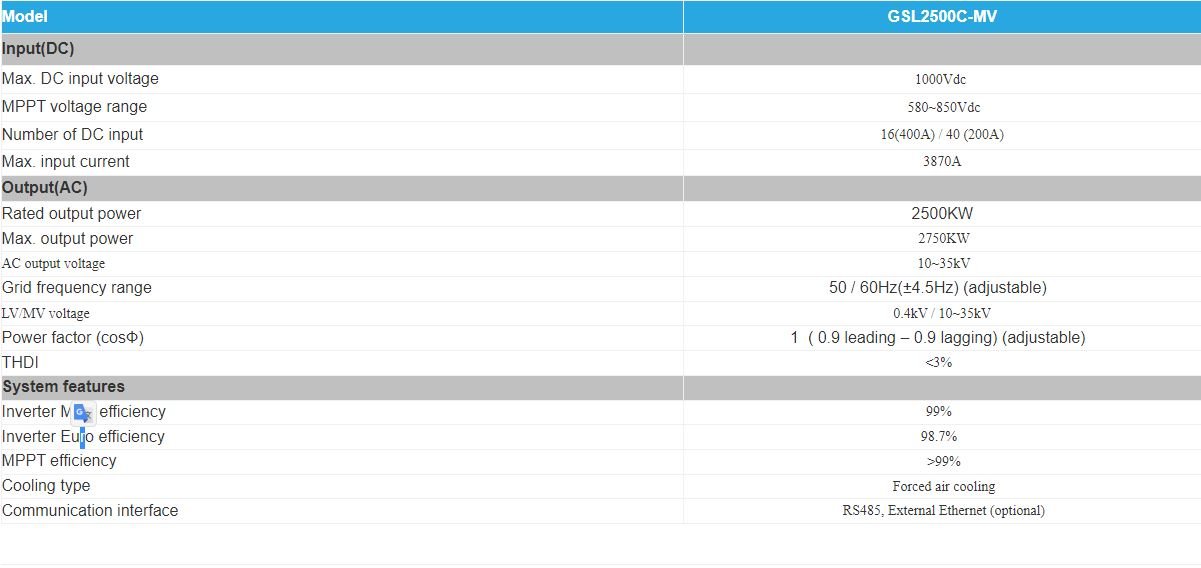

Technical Specifications
