GSM5000C-MV

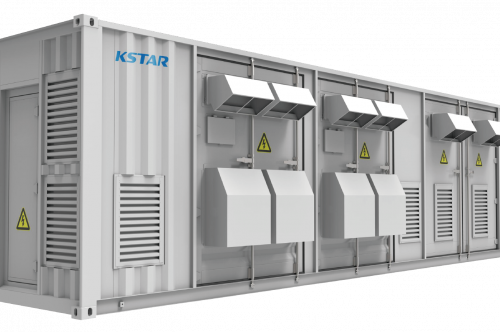

GSM5000C-MV container-type PV inverter,which is DC1500V Turnkey Solution（Inverter+MV Transformer+RMU), is a standardized 40ft shipping container. It is applicable for large-scale centralized PV power plants. It greatly shortens construction period and saves construction cost as it can be directly installed outdoors. It is higher efficiency, higher reliability and fast installation
General Features
● Max. PV voltage up to 1500V
● Max.48 DC inputs
● Modular design for Easy maintenance
● Max. DC/AC ratio up to 1.5
● Full power output under 50℃
● AGC/AVC
● SVG function at night
● IP54 outdoor protection
● LVRT/HVRT/FRT function

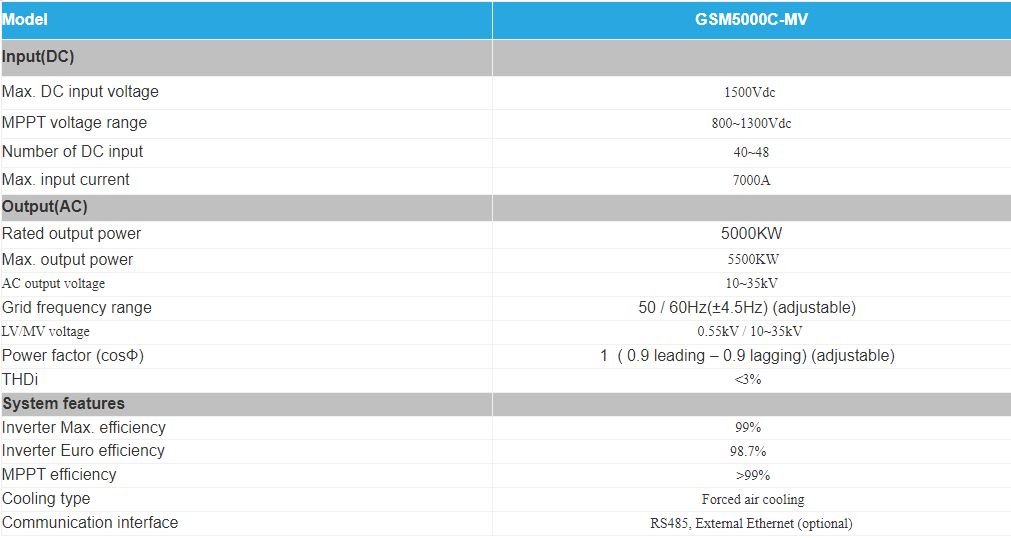

Technical Specifications
