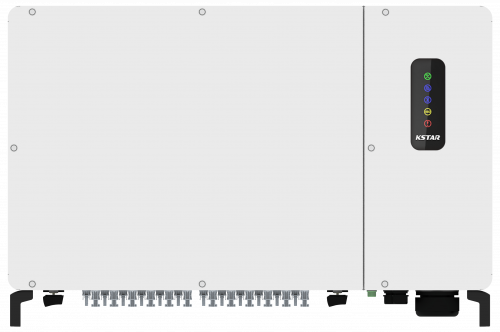

KSG-200UH/KSG-250UH
KSG-200UH/KSG-250UH PV inverter is a three-phase inverter whose input Max. DC voltage is 1500V,which is widely applied for large commercial PV systems and large-scale centralized PV power plants. It is high efficiency, high reliability and easy installation.
General Features
● 1500Vdc, 800Vac
● 12MPPT, 24 DC Inputs
● Smart I-V Curve Function
● DC and AC Type II SPD
● AFCI Function Optional
● Night SVG Function Optional
● LED+Bluetooth APP
● Max.DC/AC ratio up to 1.5

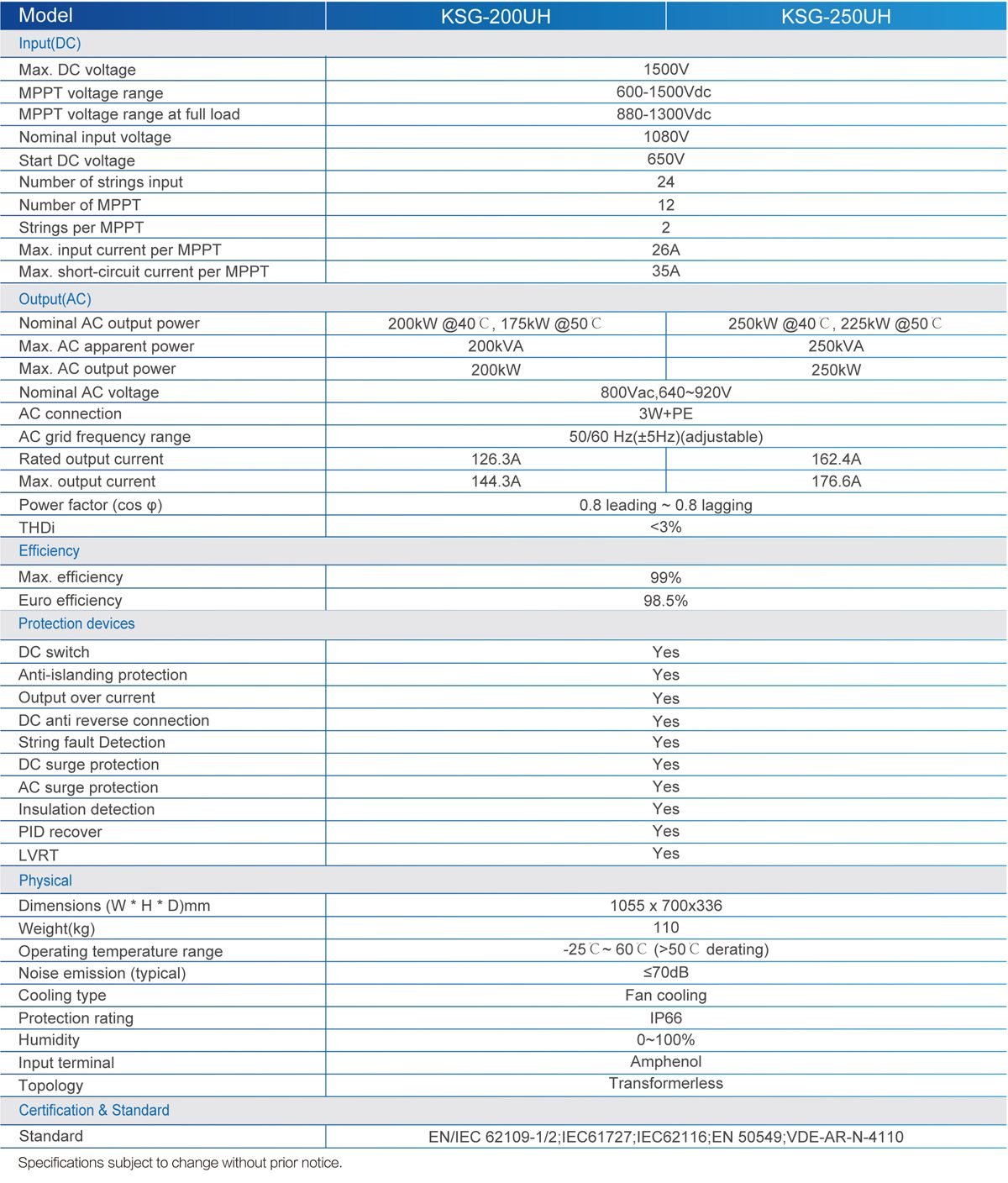

Technical Specification
